Have you ever wondered how your mid-sized industrial facility in Pakistan can turn wastewater from a regulatory burden into a resource?
Imagine a textile dyeing plant near Lahore where the effluent treatment plant keeps breaking down, the land area is shrinking, and the regulatory pressure is mounting. You’re paying high chemicals, power and sludge disposal costs — and the water table is dropping. Now imagine retrofitting a system that treats wastewater to a high standard, reuses it on-site, and shrinks your operational footprint.
In this blog post you will learn how a modern Membrane Bioreactor (MBR) system (MBR system Pakistan context) is increasingly fitting the needs of mid-sized industries in Pakistan — from textile and food processing to chemicals and plastics. We’ll cover why it makes sense, how it works, case studies, cost-benefit analysis, actionable steps you can take right now, and common mistakes to avoid. If your facility is struggling with effluent treatment, small land, regulatory risk or rising costs — this is for you.
What exactly is an MBR system and why is it relevant in Pakistan?
How does a membrane bioreactor (MBR) system work?
An MBR system combines the biological treatment process (activated sludge) with membrane filtration (micro- or ultra-filtration) to separate treated water from biomass.
Key components:
- Aeration/bioreactor tank where microorganisms degrade organic matter.
- Membrane module (submerged or side-stream) that retains biomass and suspended solids while producing a high-quality effluent.
- Polishing/disinfection/effluent reuse stage if required.
Because the membranes retain biomass, MLSS (mixed liquor suspended solids) concentrations can be much higher than conventional systems, enabling smaller footprint and higher loading.
Why is this technology relevant for mid-sized industries in Pakistan?
- Land and footprint constraints: Many industrial zones in Pakistan face land scarcity or high land costs. MBR systems have a smaller footprint than conventional activated sludge + clarifier systems.
- Stringent discharge / reuse demands: As regulatory scrutiny increases and water scarcity worsens, industries need better treatment and water recovery. A recent study indicates that many Pakistani industries lack adequate effluent treatment.
- Water reuse imperative: Pakistan is water-stressed; reusing treated effluent can reduce freshwater intake, cost, and risk. MBR systems produce effluent suitable for reuse.
- Better effluent quality: Higher removal of BOD, COD, nutrients and suspended solids, making compliance more achievable. For example, a pilot study at National University of Sciences & Technology (NUST) reported COD removal above ~90 %.
Pro Tip: When you speak with vendors, ask specifically for “MBR system Pakistan – mid-sized capacity (e.g., 100 m³/day to 1000 m³/day)” and insist on references (local) and footprint data.

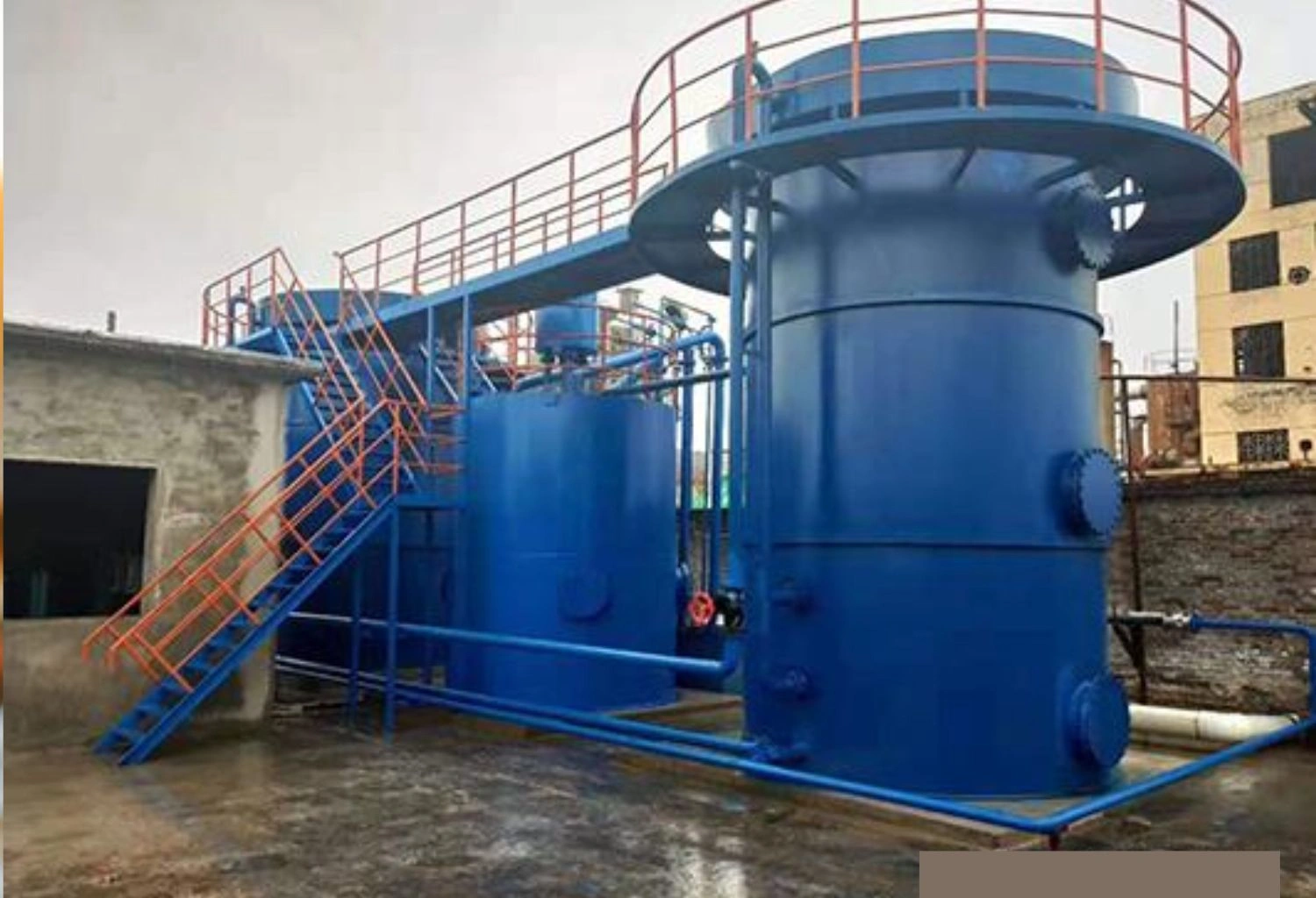

Fenton Process for Wastewater Treatment
Why are mid-sized industries in Pakistan choosing MBR systems now?
What are the driving benefits of an MBR system Pakistan approach?
- Smaller footprint and faster deployment
MBR systems eliminate large settling clarifiers and thus occupy less land. According to a presentation from the Pakistan Academy of Engineering: “The membrane biotechnology reactor (MBR) … has smaller footprint compared to traditional wastewater treatment plants.”
2. Higher effluent quality + reuse potential
In the NUST campus pilot, COD removal reached ~94 % and nitrate-nitrogen removal reached 99.9 %. This allows reuse for cooling water, process water or even landscaping.
3. Flexibility in load and scalability
MBR systems can handle variable loads better, a key plus for mid-sized industries with process changes.
4. Regulatory compliance and risk reduction
With tougher regulatory enforcement in Pakistan’s provinces, having an efficient effluent treatment technology gives you peace of mind.
5. Potential long-term cost savings
While the capital cost might be higher initially, the operational benefits—less sludge disposal, less chemical dosing, better energy efficiency—can add up.
Real-world example: Textile industry in Pakistan
One of the best illustrations: A Pakistani textile plant used ultrafiltration + reverse osmosis and achieved 85 % water recovery. While not strictly MBR, this shows the push for advanced technologies in Pakistan’s textile sector. The transition to full MBR is a logical next step for many mid-sized dyeing units.
Takeaway: If you are in a dyeing/finishing plant, or food processing unit, you should seriously consider an MBR system Pakistan strategy.
What are the obstacles or considerations when implementing an MBR system in Pakistan?
What should you watch out for in design, operation and cost?
Capital cost (CAPEX) is higher than conventional systems
According to a knowledge forum, typical CAPEX for MBR can vary significantly (the referenced global data shows USD 3,500–6,000 per m³/year capacity) though local Pakistani costs may differ.
Energy and maintenance demands
Membranes require aeration/blowers, periodic cleaning (CIP), monitoring for fouling. According to a vendor page: “Air scouring is used extensively to reduce membrane fouling… energy costs comprise 27–34 % of the total operating expense.”
Membrane fouling risk and lifecycle
Maintaining flux and avoiding fouling is critical. Research in Pakistan shows fluxes of up to 20 LMH achieved, but needed monitoring.
Technical capacity and skilled operation
Mid-sized industries may lack trained staff to operate advanced systems; vendor support is essential.
Infrastructure considerations
Adequate pre-treatment (screening, grit, primary clarification) is essential to prevent early failure.
Financial paybacks depend on water reuse, sludge savings, regulatory fines avoided
You must calculate whether you get payback through fewer sludge disposal costs, water savings, regulatory avoidance, versus higher CAPEX.
Checklist for readiness
| Item | Yes/No |
| Do you have land constraints that push towards compact solutions? | |
| Is your effluent load variable / high strength (e.g., COD > 1000 mg/L)? | |
| Do you seek water reuse or zero liquid discharge (ZLD)? | |
| Do you have access to reliable power and qualified maintenance team? | |
| Have you modeled the cost savings vs CAPEX scenario? |
Expert Insight: Before you commit, ask your engineering partner to provide a flux-versus-fouling study, local references from Pakistan, and ensure membranes spare parts are locally available. It’s much harder to fix a failed system than build one right.
How can a mid-sized industrial plant in Pakistan adopt an MBR system?
What are the steps and actionable takeaway for implementation?
Step 1: Audit your wastewater stream and internal water reuse potential
– Measure flow, load (COD, BOD, TSS, nutrients) over time.
– Identify how much of the treated effluent you can reuse onsite (cooling towers, process water, landscaping).
Step 2: Pre-treatment selection
– Ensure grit, screening, equalization to protect membranes and optimize life.
Step 3: System selection and design
– Decide membrane configuration (submerged vs side-stream) based on load and footprint.
– Size your aeration, tank volumes, blower energy.
Step 4: Vendor evaluation and local references
– Choose vendors with Pakistan experience (import parts, local service).
– Ask for case studies: e.g., the NUST pilot plant showed >90 % COD removal.
Step 5: Operation & maintenance plan
– Set up monitoring of flux, trans-membrane pressure (TMP), MLSS, fouling.
– Schedule periodic cleaning (CIP) and membrane replacement lifecycle (often 5-8 years).
Step 6: Monitor performance and reuse metrics
– Track water savings (m³/year), sludge reduction, power consumption, discharge compliance.
– Translate into cost savings and pay-back calculation.
Example case study: NUST pilot plant, Pakistan
At NUST, an MBR plant was commissioned in 2016. Key datapoints: COD removal averaged above ~90 % under several flux conditions; MLSS in the membrane tank reached ~10,000 mg/L. This illustrates that even on the Pakistani campus scale, the MBR system delivers reliable performance if properly managed.
Example case study: Textile/Water Recovery (Pakistan)
Although not purely MBR, the textile plant using UF+RO in Pakistan achieved 85 % water recovery. That shows strong demand in the textile sector for advanced water solutions — making adoption of MBR a logical step.
Actionable takeaway
- Request bench-marks from vendors: expected flux (LMH), MLSS mg/L, TMP trend.
- Build a cost model: CAPEX vs water reuse revenue, sludge savings, regulatory fines avoided.
- Start small: Consider modular MBR system with capacity you can scale. The modular concept is proven.
- Train your operations team early: Monitoring and maintenance is key to sustained performance.
- Build a reuse plan: If you treat effluent to high quality but don’t reuse it, you may not achieve full ROI.
How do mid-sized industries in Pakistan compare alternative technologies (MBR vs conventional vs others)?
What are the trade-offs?
| Technology | Footprint | Effluent Quality | Sludge Volume | Typical Cost |
| Conventional activated sludge + clarifier | Large | Moderate (may need polishing) | Higher | Lower CAPEX |
| Sequencing Batch Reactor (SBR) | Medium | Moderate to good | Moderate | Moderate |
| Membrane Bioreactor (MBR) | Smallest | High (ultrafiltration level) | Lowest | Higher CAPEX, lower OPEX potential |
As per comparative research, an MBR reactor achieved ~92 % BOD₅ removal vs ~70 % for SBR in a dairy context.
The compactness and reliability of effluent quality make MBR attractive for mid-sized industries where land and compliance matter.
Why MBR is gaining traction in Pakistan
– Industrial zones with limited expansion space prefer compact systems.
– Industries seeking zero liquid discharge (ZLD) or high reuse rates favour MBR as a key node.
– Rising cost of sludge disposal and landfill tipping make lower-sludge solutions (like MBR) more attractive.
– Increasing regulatory pressure: e.g., Pakistan’s wastewater treatment failure rate is high — a paper noted that “in 2017 the proportion of wastewater safely treated, including industrial waste, was almost zero” in certain regions.
When an MBR might not make sense
– If your flow is very low (say <10 m³/day) and traditional system can meet the load economically.
– If you don’t intend to reuse treated effluent or value doesn’t offset higher CAPEX.
– If your operations team cannot service or monitor the system properly (risk of early membrane failure).
– If energy costs are extremely high and you can’t access efficient aeration/blowers.
Future trends & implications for Pakistani mid-sized industries
What’s changing and why you should stay ahead
- Water scarcity and industrial reuse becoming normative
Pakistan is among the most water-stressed countries. The drive to maximise water reuse will push technologies like MBR into mainstream. A 2024 review of MBR technology in developing countries highlights its transformative potential.
2. Modular, containerised MBR systems
Prefabricated MBR plants (package plants) are increasingly available — meaning shorter installation time and less civil work.
3. Smart monitoring and automation
Integration with IoT, remote monitoring of flux, TMP, fouling will further reduce operation risk. Pakistani industries that adopt early gain a competitive edge.
4. Regulations tightening
Given environmental concerns, provinces (Sindh, Punjab) will likely enforce stricter effluent discharge standards, making high-quality technologies more of a necessity than choice.
5. Circular economy emphasis
Effluent reuse, resource recovery (water, nutrients, energy) will become a key industrial KPI. MBR systems position you well for circular operations.
Strategic implications for your business
- Position yourself as an industry leader in environmental stewardship — this helps branding, permits, ESG reporting.
- Treat the MBR investment as a strategic asset, not just compliance equipment — link it to water savings, sludge cost reduction, potential new revenue.
- Work with local engineers/vendors to ensure spare-parts, service support and performance tracking — avoid installing something that becomes non-functional after a year.
- Keep an eye on OPEX drivers: power, membranes, aeration, cleaning chemicals — and negotiate performance guarantees.
- Tie your treatment system into broader digital/automation strategy — data from the plant can feed into your sustainability reports, corporate marketing, and even cost modelling.
Conclusion
Investing in an MBR system Pakistan is no longer just a “nice-to-have” for mid-sized industries — it is fast becoming a strategic requirement to remain competitive, sustainable and compliant. We’ve covered how MBR systems work, why they fit mid-sized industry contexts in Pakistan, what you must watch out for, and how to take actionable steps.
If you’re ready to transform your wastewater burden into value, the next step is to commission a feasibility study: audit your flows, costs, reuse potential — and speak to vetted vendors with local references in Pakistan. Don’t wait until non-compliance or water scarcity forces your hand. Take control now.
Call to Action: Reach out to a trusted wastewater-treatment engineering firm and ask for “MBR system Pakistan – mid-sized industrial pilot” and schedule a plant audit within the next 30 days.
Also, explore related topics such as “zero liquid discharge (ZLD) systems in Pakistan”, “industrial wastewater reuse strategies in Pakistan”, and “aeration blower efficiency for MBR systems” to deepen your understanding.
FAQ
Q1. What is an MBR system and how does it differ from conventional wastewater treatment?
An MBR (membrane bioreactor) system integrates biological treatment (activated sludge) with membrane filtration (micro/ultra-filtration). The membranes replace the clarifier, retain biomass, and produce high-quality effluent. Conventional systems rely on settling and large clarifiers.
Q2. Why would a mid-sized industry in Pakistan choose a membrane bioreactor wastewater treatment solution?
Because it offers a smaller footprint, higher effluent quality (making reuse feasible), and can help with regulatory compliance and water scarcity challenges in Pakistan. Land, water and compliance pressures make the MBR system Pakistan option increasingly attractive.
Q3. What are typical performance benchmarks for MBR systems in Pakistan?
In a Pakistan campus pilot, COD removal reached about 90 %+, nitrate-nitrogen removal ~99.9 %. Also, global literature suggests high MLSS (8,000–10,000 mg/L) and fluxes of ~15-20 LMH possible.
Q4. What are the key cost considerations of implementing an MBR system Pakistan?
CAPEX tends to be higher than conventional systems. Energy, membrane replacement, aeration, cleaning (CIP) add to OPEX. But you offset costs via water reuse, sludge reduction, smaller footprint, regulatory risk reduction.
Q5. Are there common mistakes industries make when deploying MBR systems in Pakistan?
Yes — common mistakes include: inadequate pre-treatment (leading to fouling), underestimating OPEX (especially energy/maintenance), choosing vendors without local service support, not planning for reuse (so high quality treated water is wasted), lacking trained operations staff.
Q6. How can I evaluate if an MBR system is right for my facility?
Perform a water audit (flow + contaminant load + variability), evaluate land/space constraints, estimate potential reuse and cost savings, benchmark vendor performance (flux, MLSS, downtime) and plug figures into a pay-back model. Use the checklist earlier.
Q7. What about maintenance and life-span of membranes?
Membranes generally last 5-8 years (or more depending on quality and operating conditions). Fouling is the main enemy — effective cleaning (CIP), proper operation and monitoring are key. If membranes clog early, performance and cost suffer. Ensure you include spare parts and service agreement in the contract.
